rearview170 - 170 Degree Wide-Angle Wireless Reversing Camera
  • rearview170 - 170 Degree Wide-Angle Wireless Reversing Camera
rearview170 - 170 Degree Wide-Angle Wireless Reversing Camera

rearview170 - 170 Degree Wide-Angle Wireless Reversing Camera

See behind while driving Forward

$320.00 AUD

Postage FREE of charge

The rearView170 is a premium, solar-powered wireless reversing camera designed for effortless 10-minute DIY installation with absolutely no wiring required. It features an ultra-wide 170-degree adjustable lens and a 5-inch HD monitor that allows you to see behind your vehicle both when reversing and while driving forward. This versatile system is transferable between vehicles and comes equipped with a high-capacity 5200mAh battery charged by four integrated monocrystalline solar panels for reliable, long-term performance.

Pickup available at 10 Jeffreys Road

Usually ready in 4 hours

rearview170 - 170 Degree Wide-Angle Wireless Reversing Camera

10 Jeffreys Road

Pickup available, usually ready in 4 hours

10 Jeffreys Road
Glass House Mountains QLD 4518
Australia

07 5438 7750
7 Day money Back Guarantee

We offer a 7-day money-back guarantee to ensure you are completely satisfied with your purchase. If the product isn't a perfect fit for you, simply reach out within the first week for a full, hassle-free refund.
Shipping & Returns

FREE Shipping anywhere in Australia and New Zealand.

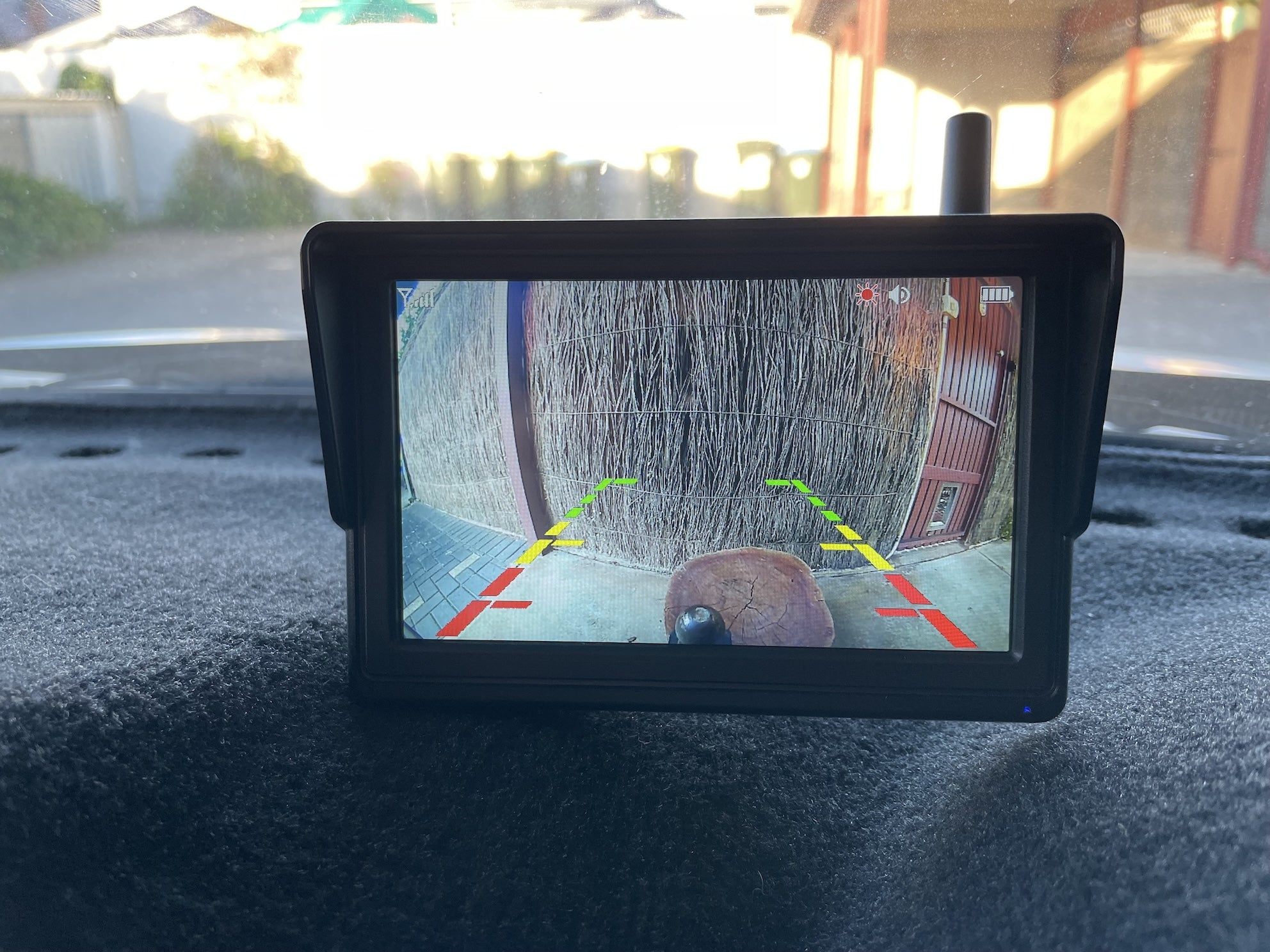

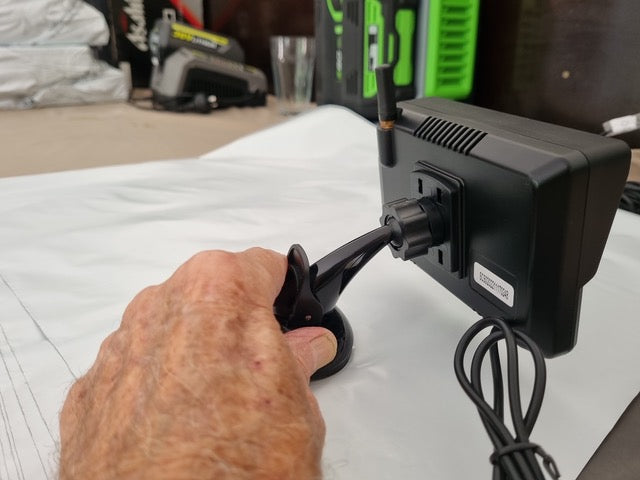

5" HD Monitor

The 5- inch Monitor will give you a crystal-clear picture both day and night. Mount the monitor on our dash or grill. Just plug cable into the cigarette lighter and press the button to receive a reception, interference free picture form the camera.

Solar Powered

reaview170 system is powered by Solar. Each unit has 4 monocrystallinesolar panels to charge the batteries inside the camera housing. Two Solar panels are in each side of the camera. The solar panels can be charged by the sun or via the UBS cable supplied.

Long-life Battery

It has a 5200mAh battery for longer life. One full charge lasts approximately three weeks, without needing to be recharged.

A Team With a Goal

rearview170 compared with other reversing cameras is outstanding value. With a DIY installation you can have it working AS SOON AS IT COMES OUT OF THE BOX. Just plug the cigarette plug into your socket and turn the ignition on. Wallah your have a picture on your screen.

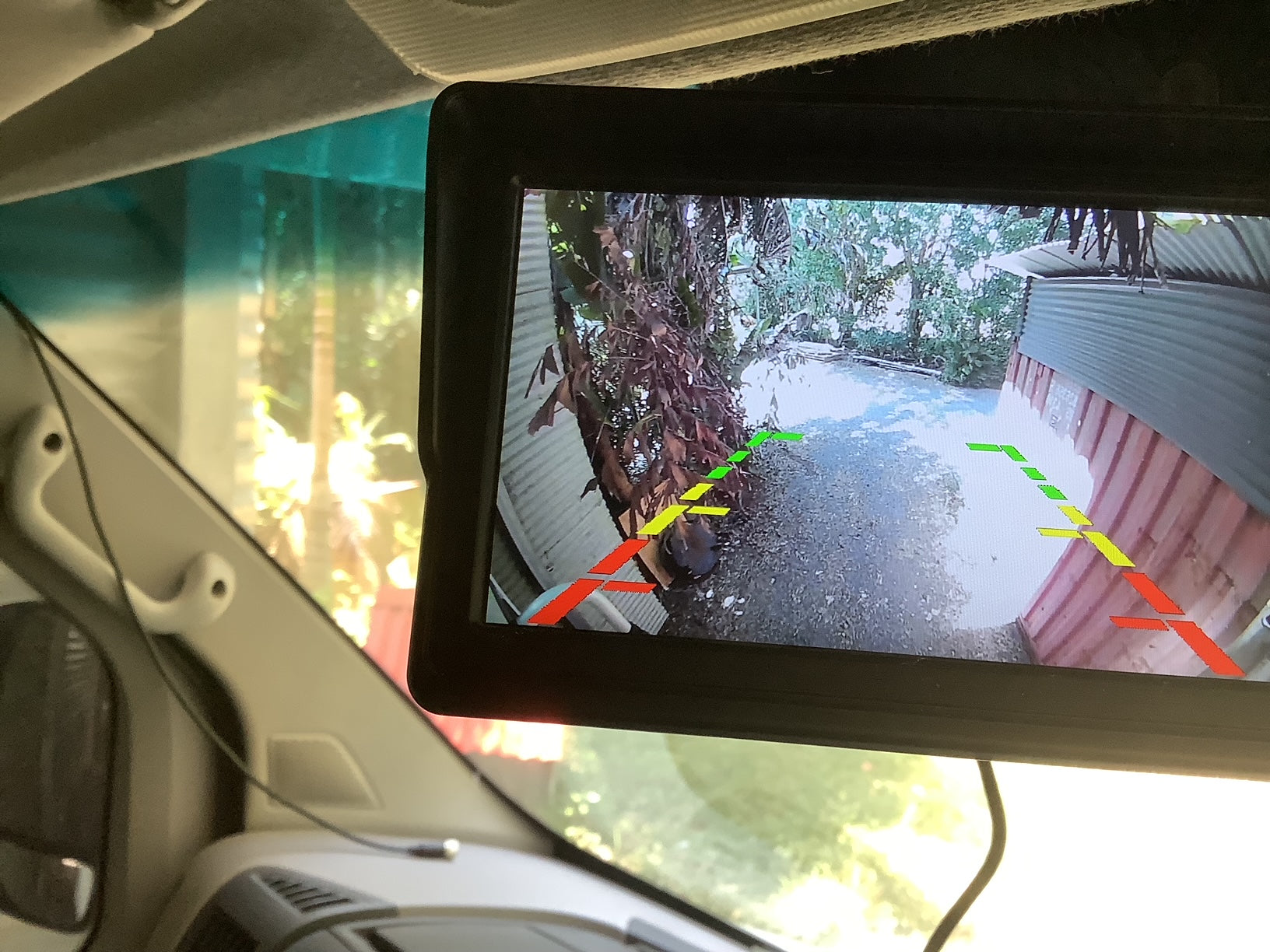

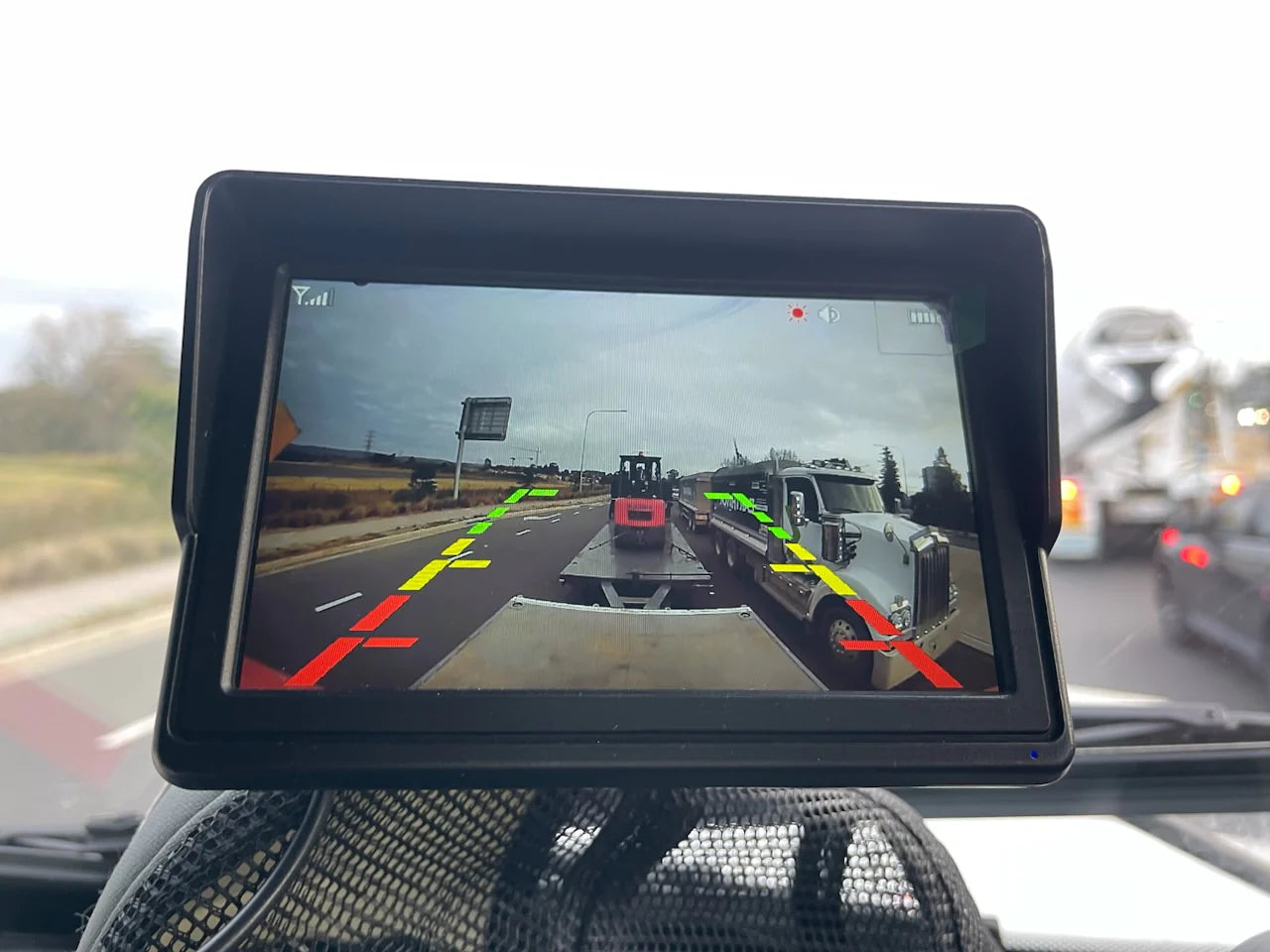

Parking Lines

Suitable for all vehicles. Safety for Day and Night.

Take the stress out of driving, reversing or just doing your job!

Customers are saying

4.71 ★ (17)
Verified

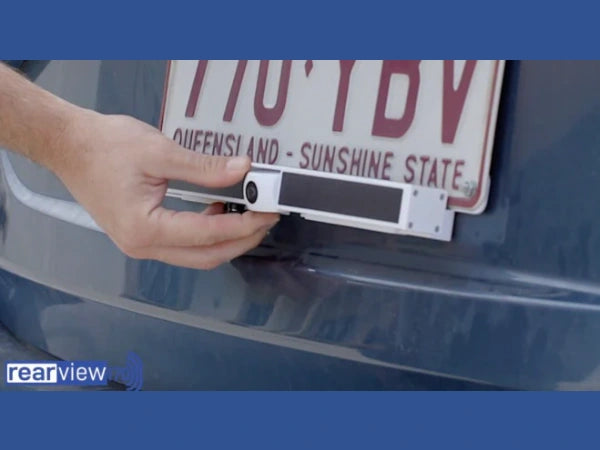

Simple 10 Minute DIY Installation

DIY install in 10 Minutes or return it. Absolutely No wiring to do. Transferable from work vehicle to camper. Solar Operated, with 4 Solar Panels, not just one. Large 5200 mAh battery capacity, you will always have power. White battery container not black so charges immediately. Same Price includes...

Installing a unique rearview170 solar powered wireless D.I.Y. back up camera. Transferable from one vehicle to another. Gives you a clear view when reversing your vehicle as well as being able to see what's behind you even while driving forward. (Timed - from 2 minutes to up to 2 hours). With the 2-hour viewing keep check on the battery level.

rearview170 D.I.Y. install in 10 minutes

Absolutely NO wires to run.

So easy to install. Radio transmitted video image.

Unlike reversing cameras which require you to be in reverse gear to see behind you, the rearview170 even works when driving forward. (Timed from 2 minutes to up to 2 hours) Different from all the rest. Designed in QLD. Don’t get sucked in by similar looking products. Safety by Day and Night. Small cost BIG value. When using the 2-hour viewing keep a check on the battery level.

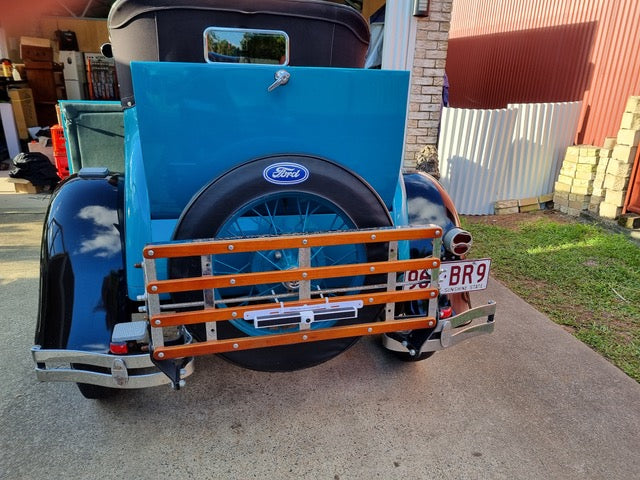

Real-World Installations

Frequently asked questions

What are the advantages of using a reversing camera for my car?

A reversing camera provides numerous benefits, including increased safety while reversing your vehicle, elimination of blind spots, and easier parking in tight spots. Additionally, our camera comes equipped with night-time vision for added peace of mind during low-light conditions.
What should I consider before purchasing a reversing camera?

When purchasing a reversing camera, it is important to consider the field of view behind the vehicle. Look for a camera that offers a wide angle view, preferably close to 180 degrees, to ensure maximum visibility while reversing. The size and quality of the monitor is also important, as is the quality of the picture produced. Look for a camera with a high pixel rating for the best image quality. Consider the type of power used by the monitor and whether it will remain on at all times. You should also evaluate the transmission distance and the quality of the night vision. When choosing a reversing camera, the type of mounting and installation required goes hand in hand with the decision of whether to opt for a wired or wireless model. If you choose a wired camera, installation can be more involved and potentially incur extra costs. However, selecting a Wi-Fi or wireless camera eliminates the need for additional installation, saving you time and money.
Should I install a reversing camera in my car?

Yes, installing a reversing camera is definitely worth considering, especially if your car has limited rear visibility. Reversing cameras can provide additional vision, alerting drivers to potential risks and blind spots, promoting safety and peace of mind while reversing.
Can I use a reversing camera at night?

Yes, a good quality reversing camera equipped with night vision capabilities (like rearview170) is able to function just as effectively in low-light conditions as it does during the day. This means that you can rely on the camera to provide a clear view behind your vehicle while reversing at night.
Can I install a reversing camera on older model vehicles, caravans, RVs, or trailers?

Yes, it's both possible and recommended to add a wireless reversing camera to these types of vehicles. This process is made much simpler with a wireless camera, as it doesn't require complex wiring integrated with your car's electrical system. Therefore, installing a reversing camera on older cars, larger vehicles, and trailers is easy and hassle-free. With a wireless camera, you can enjoy the benefits of a reversing camera without the need for extensive installation or modification to your vehicle. rearview170 also has the capability to be interchangeable from one vehicle to another.
Can I install a reversing camera by myself?

Yes, it's possible to install a reversing camera by yourself, but the difficulty level can vary depending on the type of camera you choose. Wired reversing cameras can be more difficult to install, as they require you to remove some of the interior trim to wire and connect the camera. This process requires a certain skill set and can be time-consuming. On the other hand, wireless reversing cameras are much easier to install by yourself and can be done by most people with some basic knowledge of cars and technology. Most wireless cameras rely on the car's battery to power the camera and connect to the reversing tail light of the vehicle. This way, each time the driver puts the car in reverse, the camera comes alive and transmits the picture to the monitor. The rearview 170 reversing camera on the other hand comes with a solar panel that charges the built-in battery, and you can see what is behind you while driving forward, without having to do any wiring at all. This camera provides a much better view than the standard wireless option and is a great investment for those who prioritize safety and convenience while driving.
Where is the best place to install a reversing camera on the vehicle?

For optimal performance, the ideal location to install a reversing camera is in the middle of the vehicle. Mounting it lower down will provide a better view of the distance, while placing it higher up will allow for a tow ball perspective. Typically, the rear number plate is the best spot to place it on a car, although some vehicles may benefit from having it mounted above the rear doors. The location ultimately depends on the type of vehicle, such as caravans, motorhomes, courier vans, and trucks that often require a high mounting position. Smaller vehicles like cars usually have the camera mounted on the number plate or in its vicinity.
Is a reversing camera better than car sensors?

While reversing cameras can give more visibility than parking sensors, ultimately both devices have their own advantages when it comes to backing up and parking a vehicle. Reversing cameras provide a clear and wide-angle view of the area behind the vehicle, making it easier to spot any potential obstacles or hazards. Parking sensors, on the other hand, give a more precise measurement of how close the vehicle is to objects around it. By using both systems together, drivers can get a comprehensive view of their surroundings and avoid any potential accidents or damage to their vehicle. Keep in mind, parking sensors usually require professional installation whereas the rearview170 reversing camera can be installed easily by the owner.
Is the camera waterproof?

Yes, it’s IP67 waterproof which means you can drop it in a bucket of water or do a river crossing no problems!
Why does the rearview170 camera not stay on permanently?

“See behind whilst driving forward”, and you CAN……... But, you CANNOT SEE BEHIND PERMANENTLY.
ALL rear viewing is time-limited. The default settings are 90 - 320 seconds or up to 2 hours, then the camera switches off, and for you to continue, you will need to repress the button that is on the cig-socket and also on the monitor each time you want to get another rear view. Why can you NOT see permanently? The CAMERA is solar powered, so depending on the weather and the camera's exposure to the sun (determined by which direction you are driving) decides the battery's state of charge, also considering the number of times you have peaked at the rearview. The weather is determined by nature, so we have made SAFETY our mantra. To ensure the driver has sufficient stored energy to operate the camera, we have caused the “time out” to preserve the power in case the driver has had several bad weather days. The program of the rearview170 is timed to stay on for up to 320 second or 2 hour intervals. If you require more viewing, press the button on the cigarette plug again.
Are any tools or other supplies required?

The REV170/5 comes with a full panel of double-sided tape as well as 2x stainless steel screws, 2 SS bolts and 4 SS nuts. If you don’t intend swapping it between cars, you may prefer to use the nuts & bolts supplied. If you would like to use it on multiple cars, use the screws so you can swap it over.
What happens if there’s bad weather with very little sun?

Assuming the camera was fully charged, it should last approximately for three months. If all else fails, you also have the option of using the USB charger (240/12V) to use other power sources to charge it.
What powers the monitor?

A cigarette lighter plug is supplied and once inserting into the socket in the vehicle it powers the monitor. The cigarette socket also has a USB incorporated and an illuminated button which is used to activate the screen which depicts the image from the camera. The image is supplied by wireless transmission from the solar.

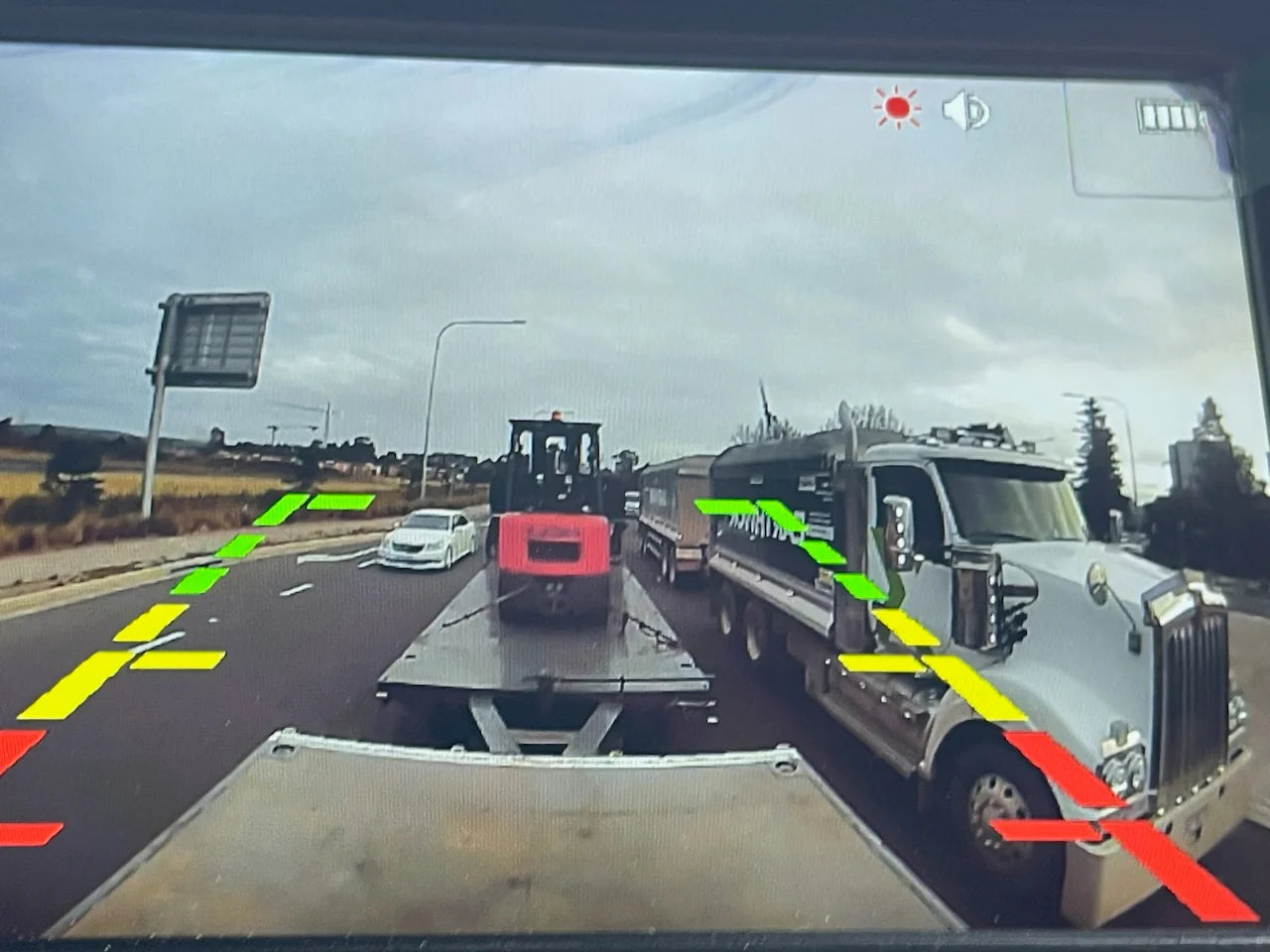

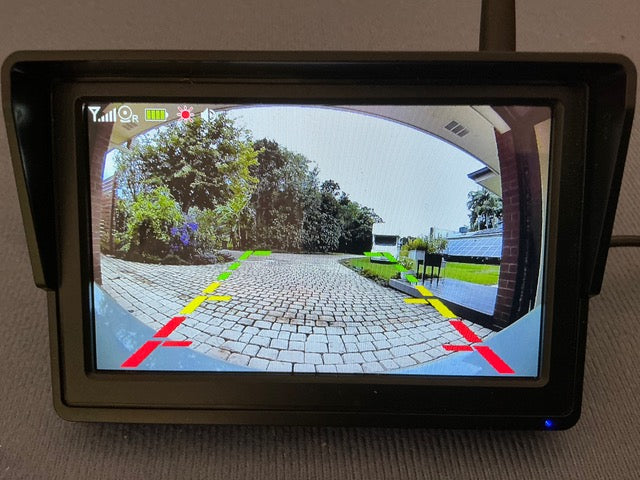

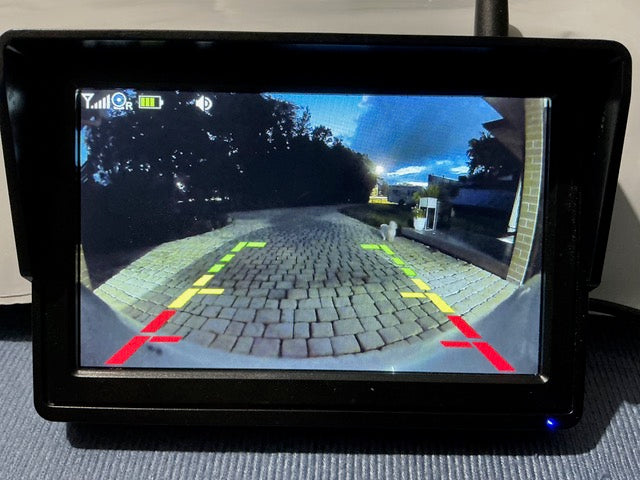

What do the parking guidelines mean?

You will notice that the distance behind is delineated by parking guidelines that have three separate colours. There is a horizontal delineation as well as vertical lines. The vertical is a straightness guide which indicates if you are going straight and not deviating side ways (to the left or right). If you are reversing into a delineated car park then you can see if you are within the area they want you to be. The horizontal line is to give the driver a measure of distance from the rear of the vehicle to the object. IMPORTANT Each driver needs to learn this. The distance from the rear of the vehicle to the object VARIES with the height of the camera mounting. This means if the camera is mounted low (say beneath the rear number plate) the rear of the vehicle to each horizontal line distance will VARY from a camera mounted at the top of a caravan. IT IS THE RESPONSIBILITY of each driver to ascertain what each horizontal distance is for the vehicle to which the camera is attached.
Where should drivers look when reversing?

Drivers should first check in each car mirror to see what is near the sides of their vehicle. Then look in your rearview170 to see that nothing is directly behind and if they feel all is clear behind, then begin reversing. Then continue to watch in the monitor as you reverse.
Orientation Time Out - How to change Parking Guidelines.

Never mind what has been done before. It is REAL EASY to return the image to normal. On the Monitor RHS edge, see where 4 button are located. The bottom button is the on/off switch which runs parallel to the cig lighter plug button. The button above it is an arrow to be used for the naviagtion that you will do. The button above that is a menu button, marked M. Switch your ignition on so that the Monitor is powered up and see an image. Then press M button for about 3 seconds before releasing it and give it a quick press again. Then the image on the Monitor will change to 3 rectangles, press bottom arrow twice, and you will see that your image has moved across to rectangle 3, to the far RHS. Hold M button down for 3 seconds and give it a quick press again, then the monitor image will list a table of alterations you can then make. The top one is Orientation. You now need to press M again for 3 second then the screen will show what the camera image can see. On the bottom of the screen aspects of orientation appear with small circles to indicate which aspect you are in. Just SLOWLY press the bottom arrow and the dots move across the screen, then STOP pressing the arrow when you have the CORRECT aspect that you need to solve your problem. Now although this is detailed for changing Orientation, the same format applies for most of the other features in the system. The change which each owner ought to consider adjusting are TIME OUT and PARKING LINES. Because these need to suit the individual drivers' needs. The more you practice with the setting the quicker you will get it but pairing is almost impossible to achieve, so please do not try it.
What is the life of the battery?

High-quality 18650 Lithium Battery - - safe & durable. Use for:- GPS, E-book, laptops, Bluetooth, mobile phones, digital cameras, digital camcorders, gaming equipment. etc.

Specifications:

• Lithium Polymer Battery Pack SL 18650 2600mAh 3.7V
• Expected e Cycle life @ (0.5C/0.5C @ 23+< 5C 500 cycles > 80%
• A typical 18650 battery stores roughly 10 watt-hours (Wh) of energy. For example, a 2600mAh = (2.6Ah) 18650 batteries would hold approximately 9.62 Wh (3.7V * 2.6Ah)
• The Cylindrical 18650 lithium Battery has outstanding performance: High energy density, Accurate dimensions.
• Superior safety and quality. The protection circuit has built-in BMC for safety control including over-charging, over-discharge, short-circuit, and temperature control.

Convert your rearview170 batteries - thus Milliamps ( mAh) to Watt Hours ( Wh) 2600 mAh = 9.62 Wh x 2 = 5200mAh

See behind whilst driving forward. (Timed)

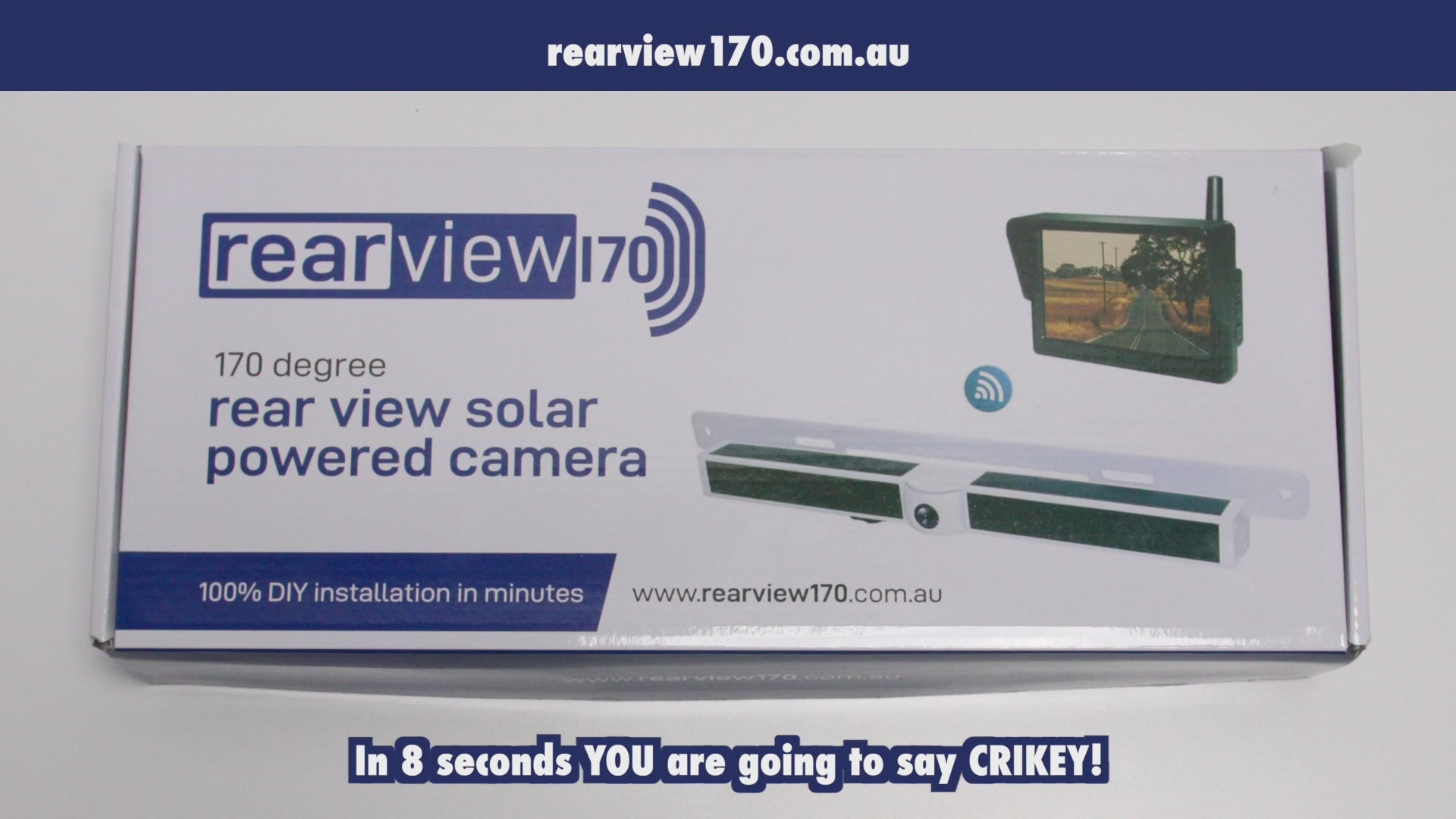

Watch this 2 minute video to see the wonders of the rearview170 system

Why Choose rearview170 Wireless Solar Powered Reversing Camera?

Australian designed

Australian-designed and warranted by Sunshine Coast locals with more than 30 years in the solar industry. You are dealing with locals who will not let you down.

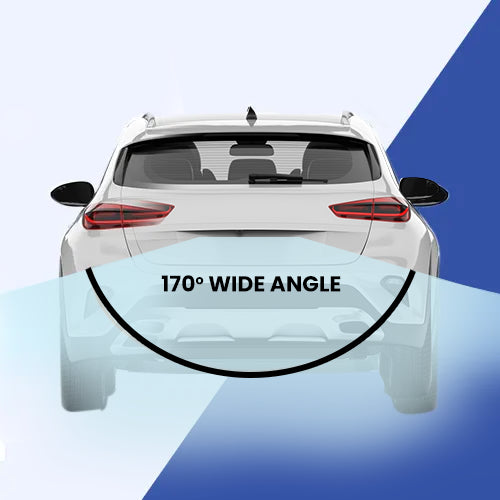

Wider field of view

Why wider field of view is so much safer. No driver could bear the thought of harming a child or pet. When looking behind you with the rearview170, you are able to see all that is within the 170-degree radius. Our 170-degree viewing angle is much wider than almost every other camera on the market, and certainly at this price. 170 degrees is almost seeing around corners!

No wiring means DIY

Almost all of the other cameras that show you what is behind you need to be installed by an auto electrician because these systems need to be wired from your car’s reversing light to the front of the vehicle via the hood lining or under the floor mats into the Monitor. You’ll need to pay an auto electrician to complete the job, plus you have the hassle of needing to drop off your vehicle and collect it.

Installation is quick and easy

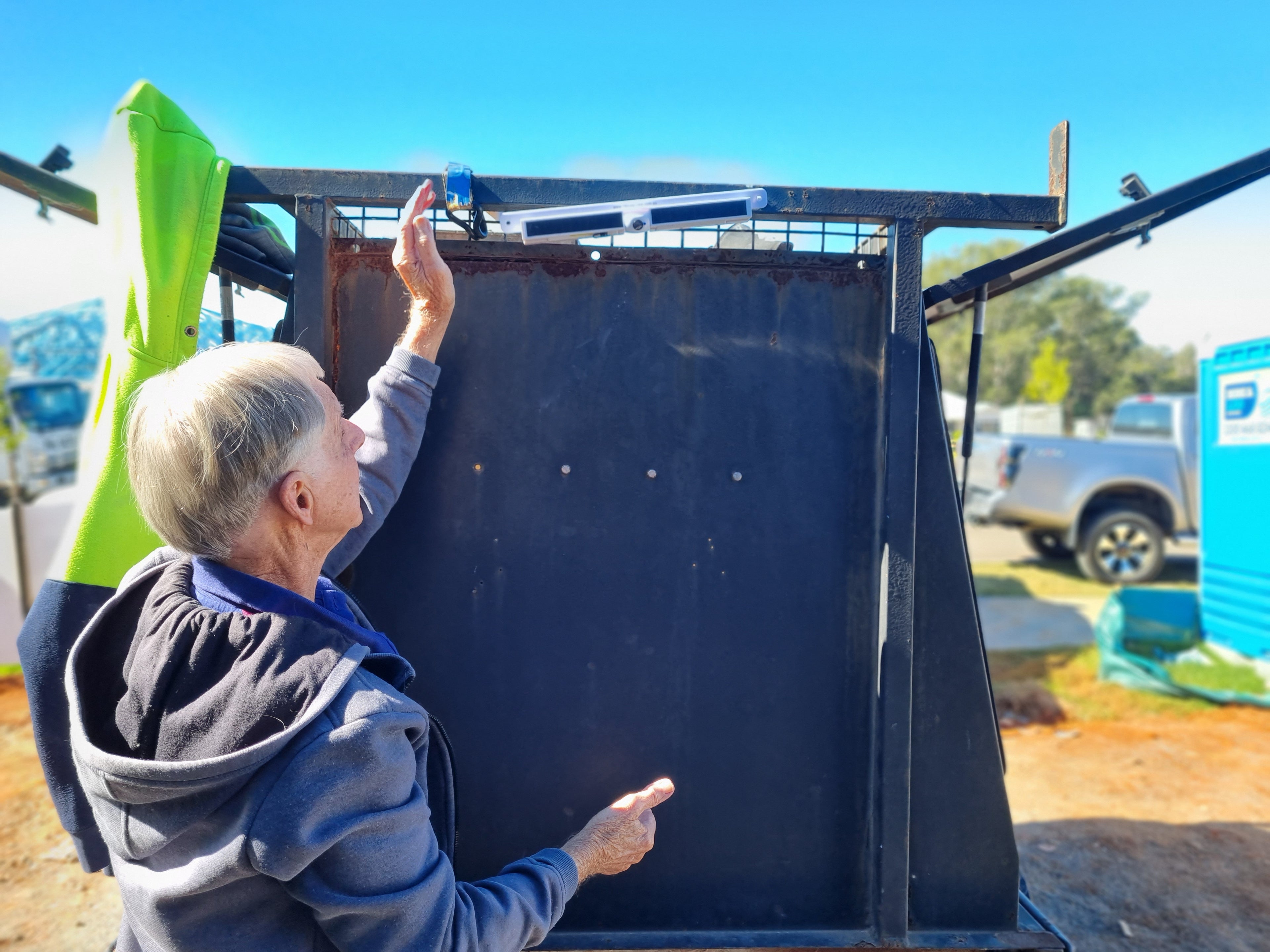

We had a unit completely installed by a 76-year-old Great Grandmother on the back of her son's motorhome just to see how easy it was. Apart from us putting the ladder in place and holding it firm, she installed the rearview170 near the top of the back of the motorhome and easily connected up the screen inside the cabin, returned up the ladder to adjust the camera angle to get the rear distance that her son required.

Versatile and durable

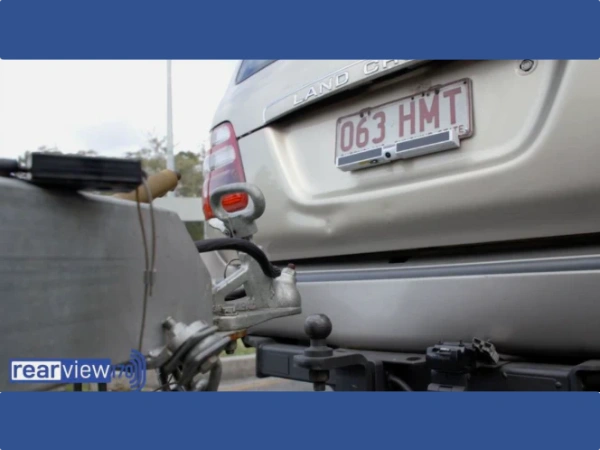

One camera can be transferred to other vehicles. If you have a boat trailer, there is no need to buy two rearview170 kits. Just take it off your primary vehicle onto your trailer. After use is completed, return it to the primary vehicle. Made from polycarbonate mounting plate, similar to material used in car bumpers.

rearview170 can be used anytime

Usually, reversing cameras ONLY engage when the reverse gear lever is engaged. This is a rearview170 camera. Anytime you desire to see what is behind you, whether you are going forward, in park or whenever, just press the monitor button and the 5-inch high-definition screen turns on. This is particularly invaluable to drivers towing caravans. They can see just how many vehicles are behind them or more importantly if they are being overtaken in an unsafe area. The driver can see if any looney has sneaked up behind and is about to pass irrespective of being safe to do so At least the driver is prepared BEFORE this happens.

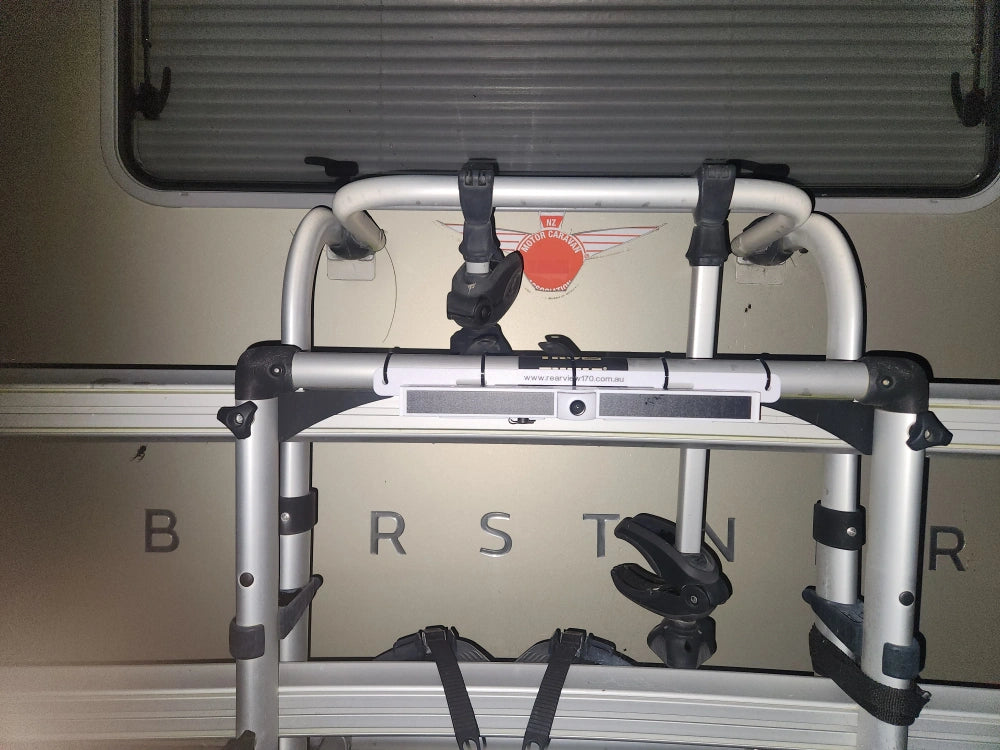

Low-cost caravan safety

Obviously if you are fitting a camera to a trailer, that wiring needs to go all the way from the back of the trailer to the monitor. It’s a very costly job and a reason why so many caravan owners have never had a rear view camera. With the flexibility of the rearview170 just one camera system is needed to be able to transfer the camera from one vehicle to another, when required in just a 14 minutes.

Fully adjustable

Some people may require the camera focused close to the rear of the vehicle, say, on a vehicle that tows a caravan or trailer, so they can see the tow ball. Then others may want to see everything behind them for, say 100 metres. The camera adjustment provides for all of this.

Product Photos

Features & Specifications

  • 170 degree adjustable wide angle camera 1280x720 pixels
  • 5” HD Colour touch screen monitor
  • 4 Monocrystalline solar panels
  • Large 5200mAh Lithium battery for longer life
  • Adjustable on-screen coloured parking guidelines
  • Digital signal transmission 17m (up to 100m open spaces)
  • 2.4G digital wireless signal, interference free
  • Maximum current 400mA
  • Working voltage 12- 30V
  • Camera Waterproof IP67
  • Camera  has  adjustable angle
  • Suitable for all types of vehicles/trailers
  • Transferable from work vehicle to camper
  • See behind whlst driving forward, solar powered, so on a timer @ 2 hour viewing

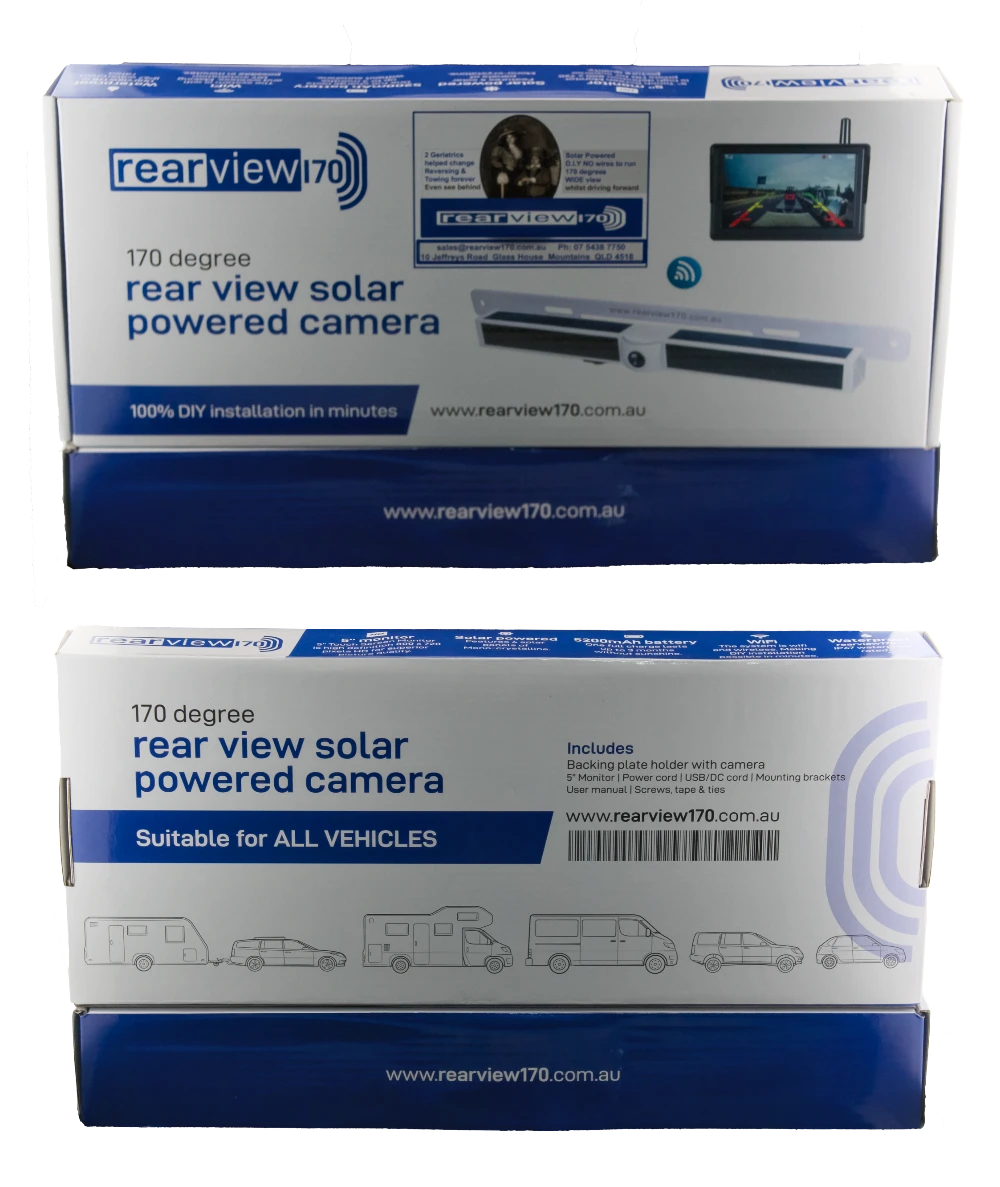

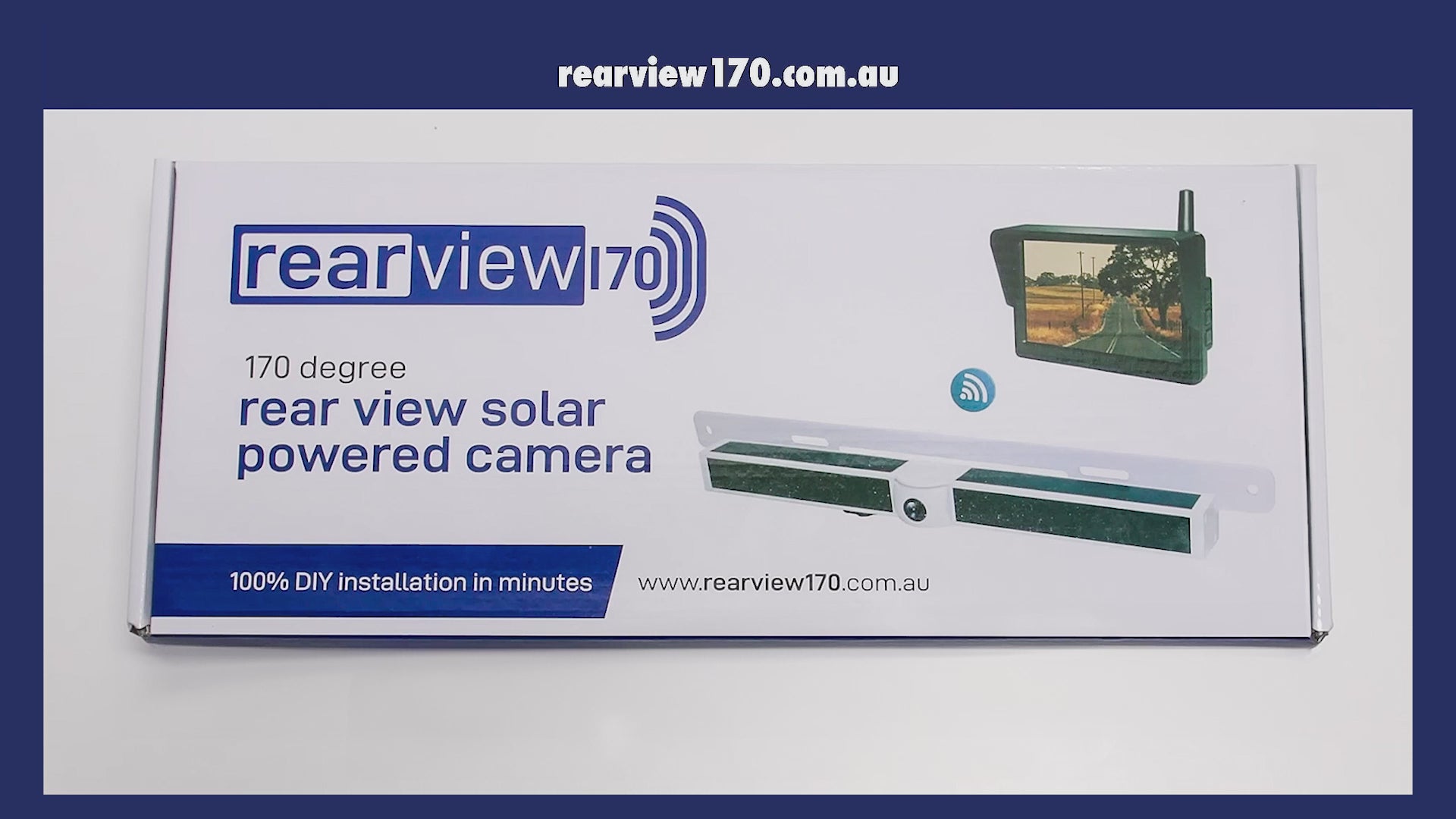

What's in the box

  • HD Camera 170-degree vision
  • Monitor 5"
  • Charging port
  • Power cable

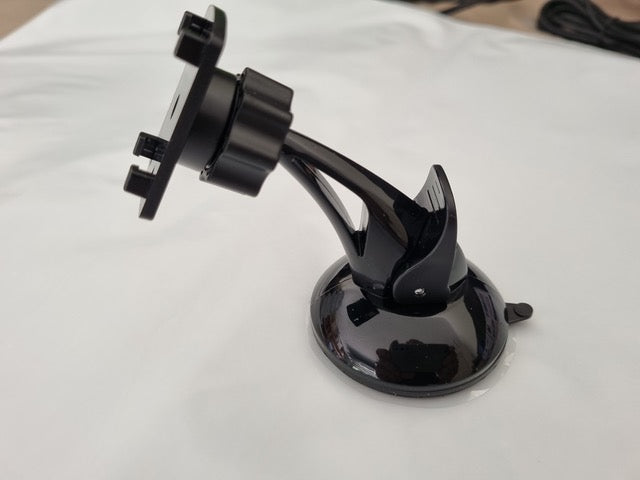

  • Mounting Bracket X 2 Suction & Grill
  • SS Gutter Bolts Included
  • Screws
  • Double sided adhesive sticker
  • Ties
  • Manual Book
